Adjustable shelving

These robust adjustable shelves consist of independent modules that can support up to 200 kg at each level. The shelves, solid or perforated, can be adjusted to any position. This is made easier by the reference marks on the uprights.

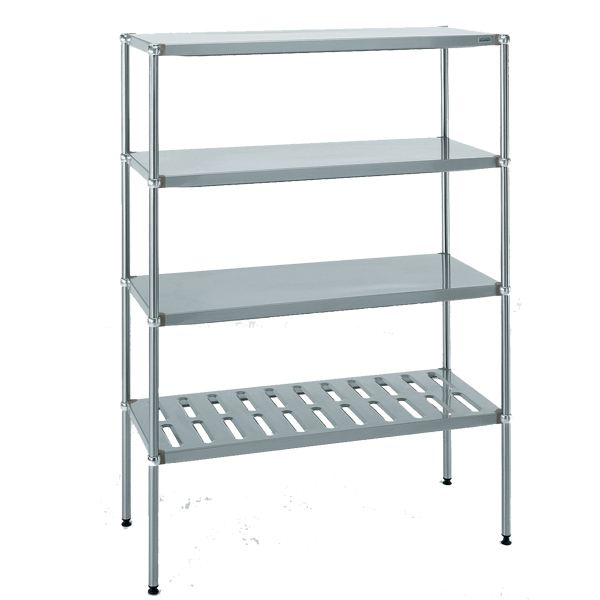

MODULAR RACKING WITH ADJUSTABLE SHELVES

Manufactured:

in stainless steel or aluminium alloy.

32 mm Ø tubes, height 1780 mm, with adjustable feet.

Shelves:

  • 3 widths: 400-500-650 mm.
  • 6 lengths : 610-715-930-1150-1255-1365 mm.
  • solid or perforated (perforations 180×25 mm).

Assembly:

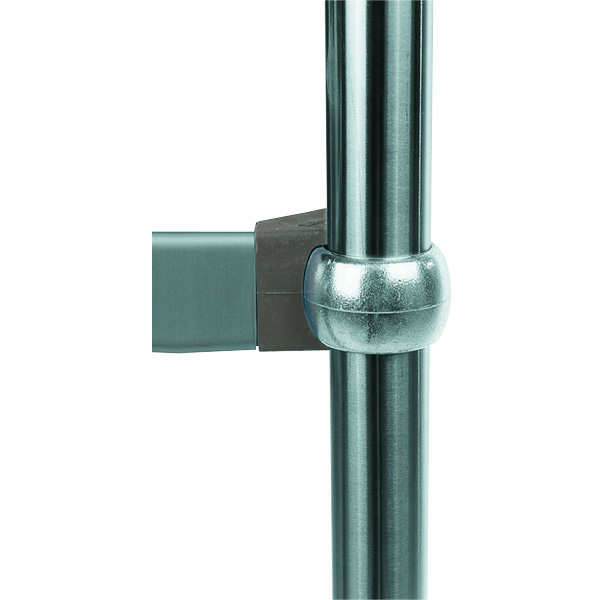

by tightening 4 aluminium rings through polyamide inserts at the corners. 20 cm increments on the uprights for easy positioning of shelves.

Shelves can nevertheless be fixed in any position.

Shelves can be assembled in corners using a hook piece to support each shelf instead of an upright.

Characteristics:

  • hygiene: NF food safety approved
  • tough construction: 200 kg per level
